The tumor microenvironment (TME) plays pivotal but conflicting roles in disease progression and therapeutic response. Pan-cancer analysis of cells within the TME, including both the stromal and immune components, are needed to clarify these cell types’ roles given the breadth and diversity of human tumor pathology. In the article 'Conservation of the Tumor Microenvironment across Organs and Species' by Januszyk, M., Lu, J., et. al., we curate the largest pan-cancer tumor microenvironment cell atlas to date with data from 15.4 million cells, 3,381 samples, and 258 datasets from human and mouse scRNA-seq tumor samples across 42 solid cancers. This TME atlas serves as an interactive web portal for users to independently interrogate these data. Further, this web atlas is accompanied by the scTME software package that will allow users to use our consensus cell type nomenclature to annotate new scRNA-seq datasets (TMEAtlas).

Image sources

Homepage: Tumor Microenvironment image: www.cancercenter.com/community/blog/2023/08/tumor-microenvironment.

Human Overview

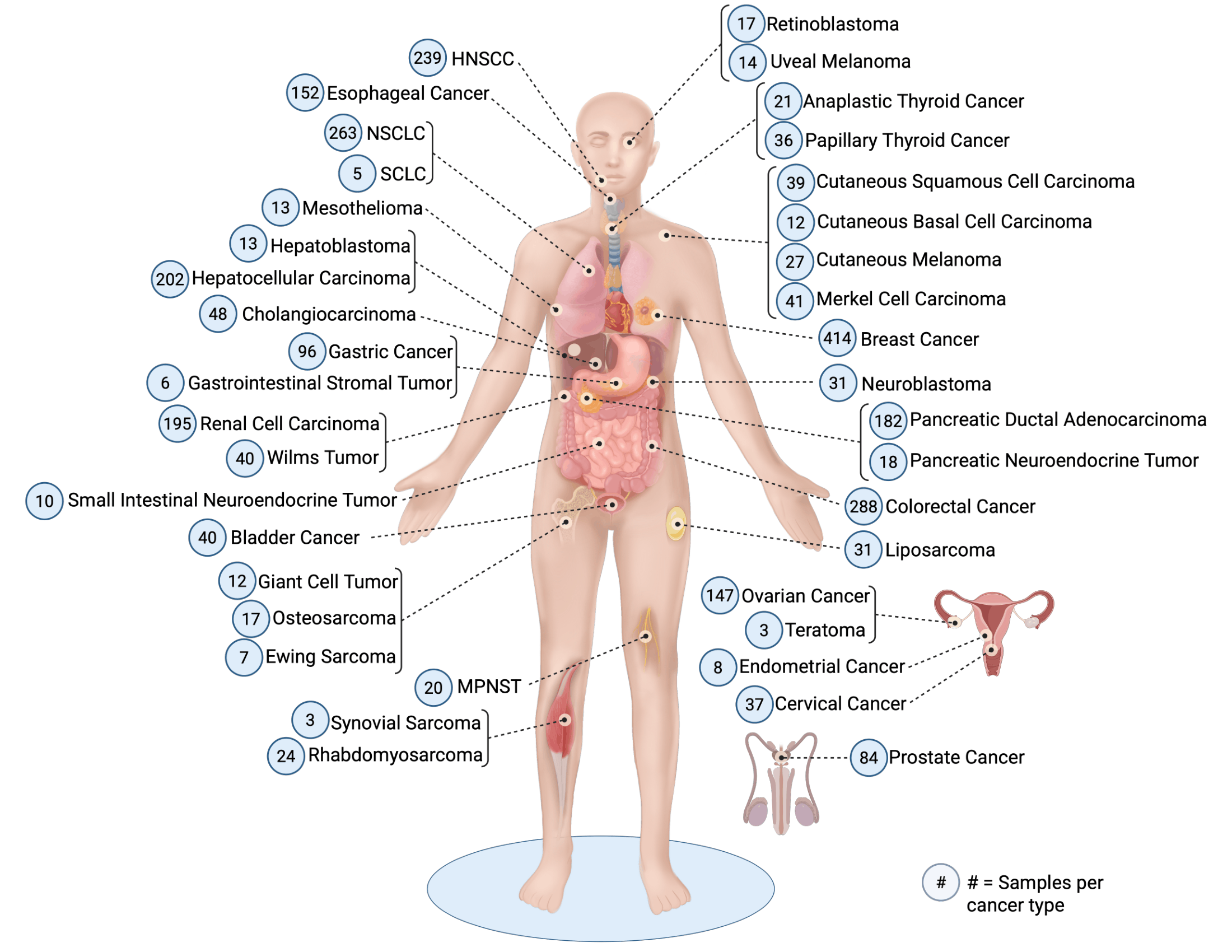

The Human Atlas is composed of 12.8 million cells from 2,855 samples from 190 scRNA-seq datasets of human solid-organ cancers. Cancer-associated fibroblasts (CAFs) are the predominant non-tumor stromal cell in the TME. Our analysis of 328,877 human CAFs resulted in the delineation of four transcriptionally distinct CAF populations: apCAFs, iCAFs, mCAFs, and ssCAFs. The conservation of CAF populations across tumor types suggests a conserved role for CAFs in solid organ tumors."

© Stanford University 2026

Mouse Overview

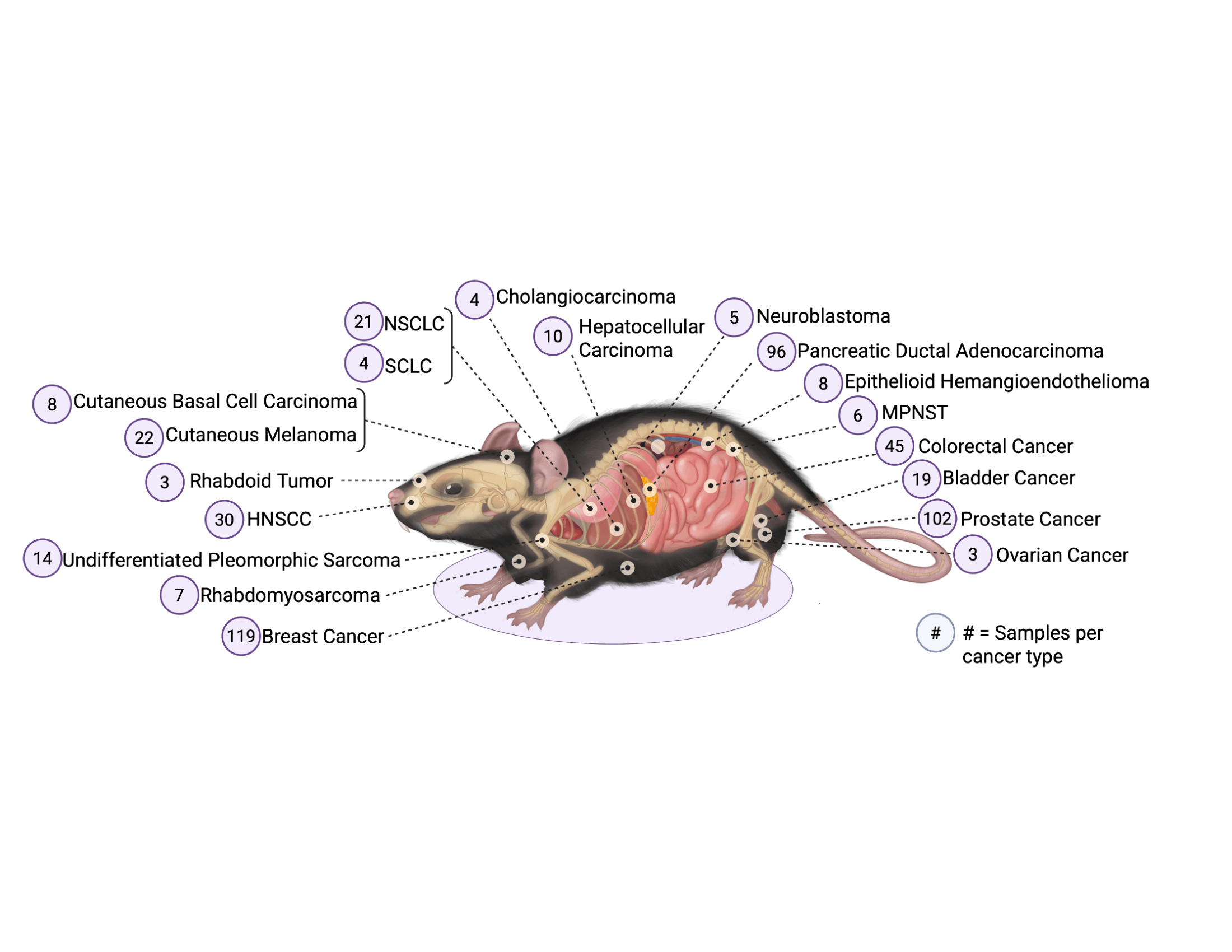

The Mouse Atlas is composed of 2.5 million cells from 526 samples from 68 scRNA-seq datasets of mouse solid-organ cancers.

© Stanford University 2026

scTME: Automated Tumor Microenvironment Annotation

Michael Januszyk — 2026-08-17

scTME transfers cell type annotations from a pan-cancer tumor microenvironment atlas onto a new single-cell dataset. The atlas is built into the package, so no reference needs to be supplied. Annotations are available at two resolutions: 7 broad parent populations, or 45 transcriptionally distinct subpopulations.

This vignette annotates a small public dataset and compares the results against that dataset’s own published labels.

## Load Packages
library(Seurat)
library(SingleR)
library(SingleCellExperiment)
library(scTME)

The reference atlas and the query dataset

The reference atlas loads from the package itself:

data("scTME_atlas", package = "scTME")

The query is a heavily down-sampled (1,000 cell) subset of the Nieto 2021 immune cell atlas (A single-cell tumor immune atlas for precision oncology), which ships with the package:

query_path <- system.file("extdata", "nieto_2021_downsampled1k.rds", package = "scTME")
query_dataset <- readRDS(query_path)

A larger 10,000-cell version of the same dataset — the one used in the accompanying manuscript — can be downloaded from https://tmeatlas.stanford.edu under Analyze Data → Download. It gives higher fidelity than the 1,000-cell subset used here, at the cost of runtime.

Note that this is a Seurat object. SingleCellExperiment objects can also be passed to scTME.

names(query_dataset@meta.data)

## [1] "orig.ident"           "nCount_originalexp"   "nFeature_originalexp"
## [4] "metaNames"            "cancer"               "tissue"
## [7] "lv1_annot"            "lv2_annot"            "cluster"

The Nieto dataset carries two levels of its own annotations (lv1_annot and lv2_annot), which are the final assignments made in that study. We have also added a cluster column, which indexes the sorted order of the lv2_annot values. Using it as the grouping variable means the cluster-level examples below test label transfer given correct groupings, rather than testing de novo clustering; the annotation itself is still made without reference to the published labels.

table(query_dataset$lv1_annot)

##
##                  B cells    B cells proliferative      CD4 effector memory
##                       75                        3                       69
##         CD4 naive-memory   CD4 recently activated  CD4 transitional memory
##                       93                       45                       14
##            CD8 cytotoxic      CD8 effector memory        CD8 pre-exhausted
##                      131                       21                       15
## CD8 terminally exhausted                      cDC Macro. and mono. prolif.
##                       75                        4                        3
##         Macrophages SPP1               Mast cells                      mDC
##                       17                        5                       19
##                Monocytes                       NK                      pDC
##                       25                       45                        5
##           Plasma B cells            T cells naive    T cells proliferative
##                       21                       81                       41
##       T cells regulatory           T helper cells                TAMs C1QC
##                       65                       33                       72
##      TAMs proinflamatory
##                       23

table(query_dataset$lv2_annot)

##
##            B cells activated               B cells memory
##                            5                           35
##                B cells naive        B cells proliferative
##                            3                            3
##    B cells unswitched memory                CD4 activated
##                           31                           26
##       CD4 effector memory RA        CD4 memory stem cells
##                           64                          165
## CD4 resident effector memory      CD4 transitional memory
##                           67                           27
##                CD8 activated                CD8 cytotoxic
##                           17                          104
##                CD8 exhausted            CD8 IFN activated
##                           98                            1
##                          DC1                    DC2 CD1C+
##                            1                           21
##                    DC3 LAMP3                    DC4 CD1C-
##                            3                            8
##     Macro. and mono. prolif.           Macrophages CXCL10
##                            5                            1
##             Macrophages SPP1                   Mast cells
##                           13                            1
## Monocytes tumor infiltrating                           NK
##                           31                           66
##                          pDC               Plasma B cells
##                            5                           20
##        T cells proliferative           T cells regulatory
##                           40                           54
##                T helper/Th17                    TAMs C1QC
##                            6                           79

table(query_dataset$cluster)

##
##   1  10  11  12  13  14  15  16  17  18  19   2  20  21  22  23  24  25  26  28
##   5  27  17 104  98   1   1  21   3   8   5  35   1  13   1  31  66   5  20  40
##  29   3  30  31   4   5   6   7   8   9
##  54   3   6  79   3  31  26  64 165  67

Run scTME on the query dataset

Now we can go ahead and run scTME. This function accepts up to 7 parameters:

• obj: The Seurat or SingleCellExperiment query dataset on which to run the predictions.
• ref: (Default: NULL) The reference object powering scTME (scTME_atlas). If left as NULL, the package’s built-in reference atlas will load automatically.
• clusters: (Default: NULL) If NULL, the function evaluates each cell independently. Alternatively, provide a character array or column name labeling the groups/clusters in the query dataset (e.g., query_dataset$cluster or "cluster") to run faster, cluster-level predictions.
• level: (Default: 2) Evaluates the query against all 45 high-resolution subpopulations. It can optionally be set to 1 to evaluate against the 7 broader parent populations.
• label.col: (Default: NULL) The specific metadata column in the reference object containing the cell type labels. If NULL, the function automatically selects the correct column based on your chosen level.
• max.cells: (Default: 50000) To improve runtime, this value automatically downsamples the query dataset if it exceeds this threshold.
• return.details: (Default: FALSE) By default, scTME returns a vector of the most likely cell type predictions. If set to TRUE, the program returns a full list object containing additional prediction strength and confidence metrics.

Note that the query downsampling controlled by max.cells is random. Call set.seed() beforehand if you need a reproducible result.

Broad populations, cluster-level

res = scTME( obj = query_dataset, ref = NULL, clusters = query_dataset$cluster, level=1, return.details = F )

## No reference provided. Loading built-in scTME atlas...

## Log-normalizing reference object...

## Warning: Layer 'scale.data' is empty

query_dataset$prediction <- unname(res)

We can now compare these predictions against those originally assigned by Nieto. scTME_generateHeatmap() cross-tabulates the two, coloring by row proportion and printing the raw cell counts.

scTME_generateHeatmap(query_dataset,
                      pred_col  = "prediction",
                      annot_col = "lv1_annot")

Cluster-level agreement between scTME broad-population predictions and the published labels

Subpopulations, cluster-level

Level 2 gives more precise predictions for each query_dataset$cluster.

res = scTME( query_dataset, ref=NULL, clusters = query_dataset$cluster, level=2, return.details = F )

## No reference provided. Loading built-in scTME atlas...

## Log-normalizing reference object...

## Warning: Layer 'scale.data' is empty

query_dataset$prediction = unname(res)

scTME_generateHeatmap(query_dataset,
                      pred_col  = "prediction",
                      annot_col = "lv2_annot")

Cluster-level agreement for the 45 subpopulations

Subpopulations, cell-level

Setting clusters = NULL annotates each cell independently. This is slower and noisier than the cluster-level call above, but requires no prior grouping of the query dataset.

res = scTME( query_dataset, ref=NULL, clusters = NULL, level=2, return.details = F )

## No reference provided. Loading built-in scTME atlas...

## Log-normalizing reference object...

## Warning: Layer 'scale.data' is empty

query_dataset$prediction = unname(res)

scTME_generateHeatmap(query_dataset,
                      pred_col  = "prediction",
                      annot_col = "lv2_annot")

Cell-level agreement for the 45 subpopulations

Visualize Predictions on UMAP

To see how the predicted cell types map onto the transcriptomic landscape, we can visualize the cells in reduced dimensional space. Here, we project both the original high-resolution annotations and the new scTME predictions onto the UMAP embeddings using our custom plotting wrapper.

# Plot the original annotations using the safe wrapper
plot_true <- plotPredictionUmap(query_dataset, reduction = "umap", pred_col = "lv2_annot")

# Plot the scTME predictions using the safe wrapper
plot_pred <- plotPredictionUmap(query_dataset, reduction = "umap", pred_col = "prediction")

# Only attempt to modify and combine the plots if the UMAP actually exists
if (!is.null(plot_true) && !is.null(plot_pred) &&
    requireNamespace("patchwork", quietly = TRUE)) {

  library(patchwork)

  # Override the default titles and remove legends for clean patchwork display
  plot_true <- plot_true + ggplot2::ggtitle("True Annotations") + Seurat::NoLegend()
  plot_pred <- plot_pred + ggplot2::ggtitle("scTME Predictions") + Seurat::NoLegend()

  # Display side-by-side
  plot_true + plot_pred

} else {
  message("Skipping UMAP visualization because the 'umap' reduction is missing from the object.")
}

UMAP of the query dataset colored by published labels (left) and scTME predictions (right)
